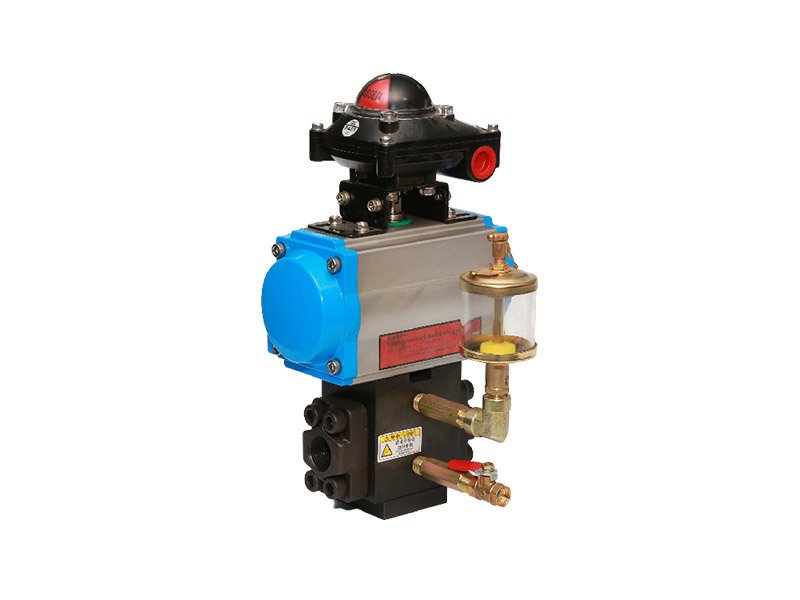

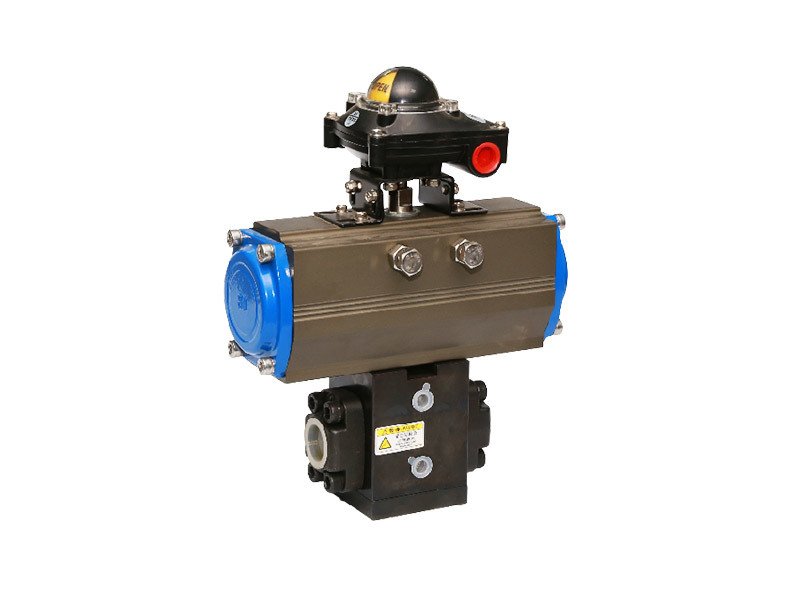

High pressure valve has been widely used in superhard material manufacturing, chemical industry, petrochemical industry, processing technology, isostatic pressure processing, ultra-high static
pressure extrusion, powder metallurgy, metal forming and geophysical, geological research and other fields.
It can be used to control the flow of air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media and other types of fluids. The opening and closing part is a disc shaped valve plate that rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjusting. The high pressure valve mainly plays the role of cutting and throttling on the pipeline.

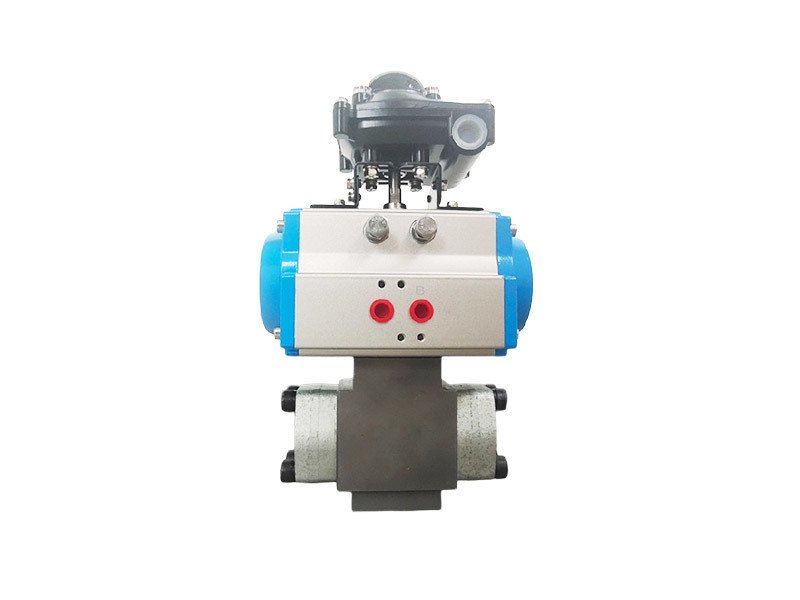

Characteristics of high pressure valve
1. The best design product for DUThigh-pressure casting equipment.
2. Controlled by pneumatic actuator to prevent backflow.
3.With ultra-precision equipment production to ensure product life.
4. Under the action of pneumatic actuator, super fast high pressure rising time is generated
In order to improve the ability of ultra-high pressure valve erosion wear, usually choose the following corrosion resistant materials with the following characteristics.
1.High hardness
2.Acid corrosion protective film
3.High yield point, good stability
4.High fatigue strength
To improve the properties of materials, one is alloying, by changing the chemical composition of steel to develop new materials with special properties. The second is to use appropriate heat treatment. Without changing the chemical composition of the steel, different heating, insulation and cooling are applied to the steel in the solid state to change the structure of the steel and improve the properties of the material.
The high-pressure valve of our company mainly uses 38CrMoALA, which is a kind of high-grade nitride steel quality, has high surface hardness, wear resistance and fatigue strength, and has
good heat resistance and corrosion resistance, hardenability is not high. After going through nitriding, quenching and other processes, this product will have better wear resistance, fatigue
resistance, corrosion resistance and high temperature resistance.
General assembly drawing
Structure diagram of high pressure valve
Assembly steps
Product Specification
| Serial number | Quantity | Part name | Specifications |
| 1 | 3 | O-ring | φ18.2×φ14×3.2 |
| 2 | 3 | Glyd-ring | φ22×φ18.2×3.2 |
| 3 | 1 | Valve rod | φ24×103 |
| 4 | 8 | Soket headcapscrew | M10×35 |
| 5 | 2 | Inlet &outlet frange | 69×45×26 |
| 6 | 2 | Hexagonsocket plug | G1/4 |
| 7 | 1 | Valve body | 90.5×80×62 |
| 8 | 1 | Bonnet | 60×60×15.5 |
| 9 | 4 | Hexagon socketcapscrews | M6×110 |
