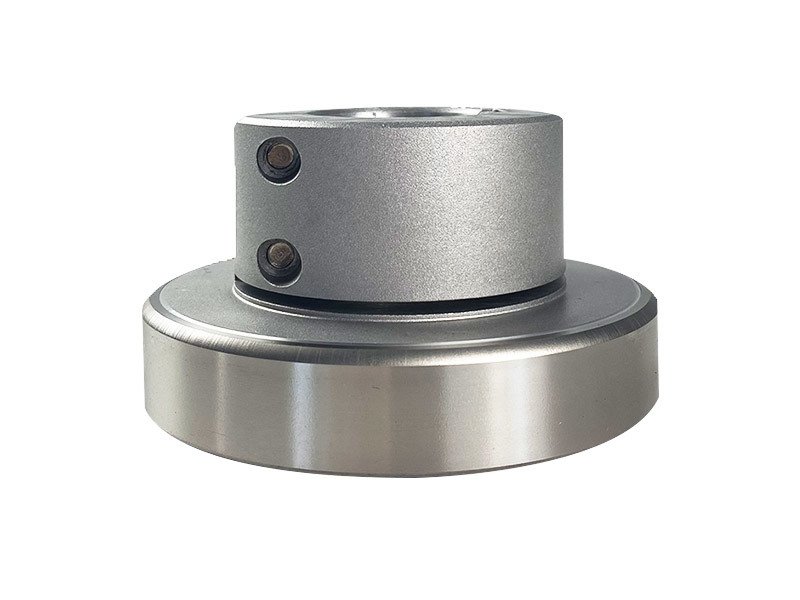

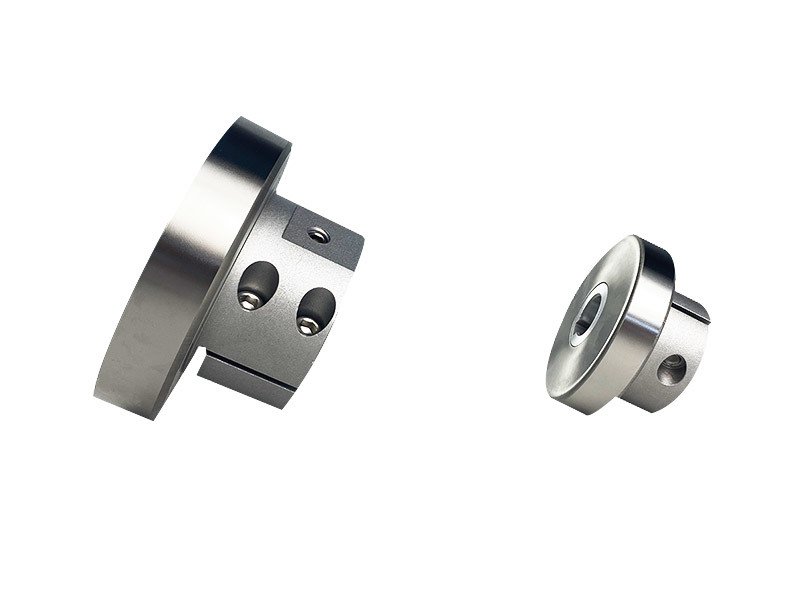

Permanent magnet synchronous coupling can use the magnetic force between internal and external rotors to transfer torque.The precision loss caused by mechanical wear can be effectively controlled and the service life is longer.
This product can be customized according to customer installation requirements. Accessories can be used on older models to replace conventional sealed couplings to meet production requirements.
| Type | Power(Nm) | A | B | C | D | E | F | G | H |
| PMB-30 | 0.2 | 30 | 20 | 5 | 20 | 15 | 3.5 | 5 | 43.5 |
| PMB-45 | 0.3 | 45 | 4.8 | 44.8 | |||||
| PMB-50 | 0.6 | 50 | 30 | 8 | 5.0 | 8 | 45 | ||
| PMB-60 | 1.0 | 60 | 35 | 10 | 25 | 20 | 12 | 55 | |
| PMB-75 | 2.0 | 75 | 40 | ||||||
| PMB-95 | 5.0 | 95 | 50 | 14 | 6.0 | 19 | |||
| PMB-110 | 10 | 110 | 70 | 32 | 28 | 22 | 70 | ||
| PMB-120 | 20 | 120 | 80 | 24 | 6.5 | 24 | 70.5 | ||
| PMB-130 | 30 | 130 | 45 | 40 | 96.5 | ||||
| PMB-140 | 40 | 140 | 28 | 28 | 105.5 | ||||
| PMB-150 | 50 | 150 | 100 | 38 | 50 | 45 | 42 |
Jinyiyang excels in crafting Customized Magnetic Rotors, offering bespoke solutions tailored to meet the unique requirements of your machinery. Our magnetic rotors are designed with precision and built using high-quality materials, ensuring optimal performance and longevity. The customization process allows for specific specifications such as size, shape, and magnetic strength, providing you with a product that perfectly aligns with your operational needs. With Jinyiyang’s Customized Magnetic Rotors, experience unparalleled efficiency and reliability in your magnetic drive applications.
